The RealCADD Manual Mac version
Window >> Command line – Line

Select and click under the Window menu for the pallet to be displayed and active. Marked with a ✓ in the Window menu when active.

RealCADDThe Carbon version of RealCADD Command Line pallet is shown to the right. The Cocoa version Command line is similar, but it is fixed to the bottom left of the window instead of being a floating pallet.

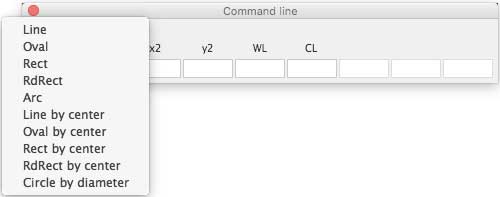

RealCADDThe principle behind the command line is that you can enter data for objects (line, oval, rectangle etc.) as you draw, rather than editing the data after the object is drawn. Clicking the RealCADD arrows will display the menu of objects that can be drawn with the command line.

Row 01 Row 02 Row 03 Row 04 Row 05 Row 06 Row 07 Row 08 Row 09 Row 10

To see details of how the tools work in the command line, click the appropriate menu item in the image to the right and scroll down. The descriptions are based on the standard Mac Click & Drag drawing mode. If you have selected Click & Click in Preferences, then there will be minor differences.

The basic operation of the command line (having selected it in the Window menu) is to start drawing with whatever cmd you wish to use and, while holding the mouse button down, enter the specific data in the command line window, tabbing from one box to the next. When you are done entering data, hit the ⏎ (Enter/Return) key and let go the mouse. The object will be draw according to the data you have entered. You can use some Snap attractions (End, Center and Intersection) to select a start point for drawing the object. Currently you can't use Perpendicular or Tangent (if drawing a line).

Line

RealCADDWith the command line active, selecting the Line tool (or hitting the L-key) will automatically change the command line pallet to line mode.

Click on the drawing where you want to start your line, keep the mouse button held down and start to drag. The pallet will automatically register x1 and y1 (the start position of the line), where you clicked.

Once you have started to drag, you can select the entry mode.

X-mode

If this is the first time you have used the command line the pallet will probably be in this mode and will show the next two boxes as x2 and y2 as image above right. These will be the absolute x and y positions of the end of your line positions.

If it is not in this mode hit the X key, which will put it in X-mode.

To complete drawing your line, enter the x2 position data (keeping the mouse button held down); hit the ⇥ (tab) key to move to the y2 box and enter the y2 position data. Click ⏎ (Enter/Return) and let go the mouse.

The other two boxes are optional. WL = line width: enter this as a number in pixels. CL = line colour: enter 0 = black, 1 = red, 2 = yellow … 7 = white. If you want to use these, after entering y2, hit the ⇥ (tab) key to move to the WL box and enter the data. Then tab again if you want to enter the colour data. Then hit ⏎ (Enter/Return) and let go the mouse.

RealCADDD-mode

After you have done your first click and started to drag to draw your line, hitting the D key will move the pallet to D-mode. In this mode dx and dy replace x2 and y2. dx is the distance travelled horizontally in the x-direction; dy is the distance travelled vertically in the y-direction.

Enter the dx data and then tab to the dy box and enter that data. If you want to enter optional WL and/or CL do so. Then hit ⏎ (Enter/Return) and let go the mouse.

Tip: Entering dx = 0 will give you a vertical line the dy length. Entering dy = 0 will give you a horizontal line the dx length

RealCADDL-mode

After you have done your first click and started to drag to draw your line, hitting the L key will move the pallet to L-mode. In this mode L is the Length of the line and A is the Angle.

Enter the L data and then tab to the A box and enter the angle. If you want to enter optional WL and/or CL do so. Then hit ⏎ (Enter/Return) and let go the mouse.

Tip: If your zero position is the top left corner of the screen (the default), then your start data will be positive numbers. If you have moved your zero point elsewhere, then both x-data and y-data can be positive or negative. Drawing from left to right will be x-positive; right to left will be x-negative. Similarly drawing from top to bottom will be y-positive and from bottom to top y-negative. If you have selected in Preferences for "Positive y upwards", then y-positive and y-negative will be reversed

Tip: You can move forwards and backwards along the boxes by using ⇥ (tab) and ⇧⇥ (shift-tab)
